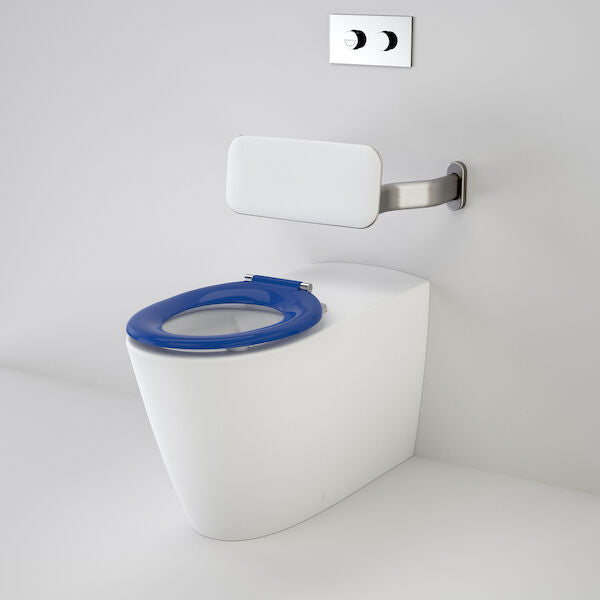

Caroma Care 800 Cleanflush Wall Faced Invisi Series II Suite With Backrest

The Caroma Care 800 Cleanflush range is ideal for hospital, aged care and commercial applications where the absolute highest levels of hygiene and rapid cleaning are required. The Care 800 Cleanflush Invisi Suite with Backrest in particular features a raised height seat, an increased pan projection and backrest specifically designed to provide extra support for people with disabilities and applications requiring compliance to AS1428.1-2009 Amd.1 Design for Access & Mobility.

PRODUCT FEATURES

• Meets AS1428.1 2009 Amd. 1 Access and Mobility requirements when used in conjunction with backrest, single flap seat and raised height buttons
• Caroma Cleanflush® rimless technology is a patented Australian design that provides a whole bowl clean with no splashback.
• Care 800 Cleanflush® Easy Height back inlet pan, ideal for the elderly or people with restricted movement
• Invisi Series II® concealed cistern (suitable for induct, inceiling, inwall or undercounter** installations)
• Universal trap pan for S or P trap installations
• Includes Caroma's patented Uni Orbital® Connector, ensuring unparalleled fit out flexibility during installation (up to 50mm radius)
• Caroma Adjustable Flushpipe provides flexibility with aligning water inlet to the pan
• For undercounter installation use fixed flushpipe code: 237222
• Includes Caroma stainless steel Backrest
• Raised buttons sold separately, Includes rough in and fit out kits

SPECIFICATIONS

• Product Type: Care
• TRAP TYPE: Universal
• P TRAP SET OUT - MIN. (MM): 185
• P TRAP SET OUT - MAX. (MM): 185
• S TRAP SET OUT - MIN. (MM): 140
• S TRAP SET OUT - MAX. (MM): 335
• INLET TYPE: Concealed Cistern
• MATERIAL: Vitreous China

WELS Information

• Registration Number: L04641
• Star Rating: 4
• Water Consumption: 4.5/3 (3.5L average flush)
