Phoenix Flat Channel 75mm Heel Guard Drain 65mm Outlet - Stainless Steel

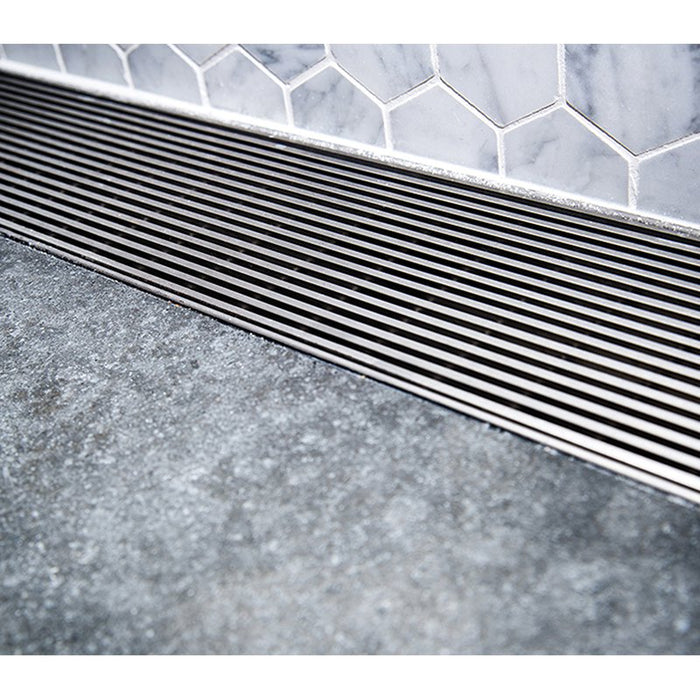

Manufactured using premium marine grade stainless steel, our flat channel drains are designed to stand the test of time. The drain grate is one of the shallowest channel drains available on the market at 22mm deep, which saves time for installers and reduces the cost installation. The tile insert (TI) designs are suitable for all floor tiles including ceramic tiles, natural stone and pavers. Our heelguard (HG) designs include a fine linear heel guard design that prevents the heel catching in the grate, avoiding any foot discomfort or injury. Together, our Phoenix Flat collection allows you to create a sophisticated finish to indoor and outdoor environments.

Product Features

• Available in four channel lengths and two channel widths
• Premium, marine grade 316 stainless steel construction, suitable for outdoor and indoor applications
• Fine, linear design, ideal for heavy water flow

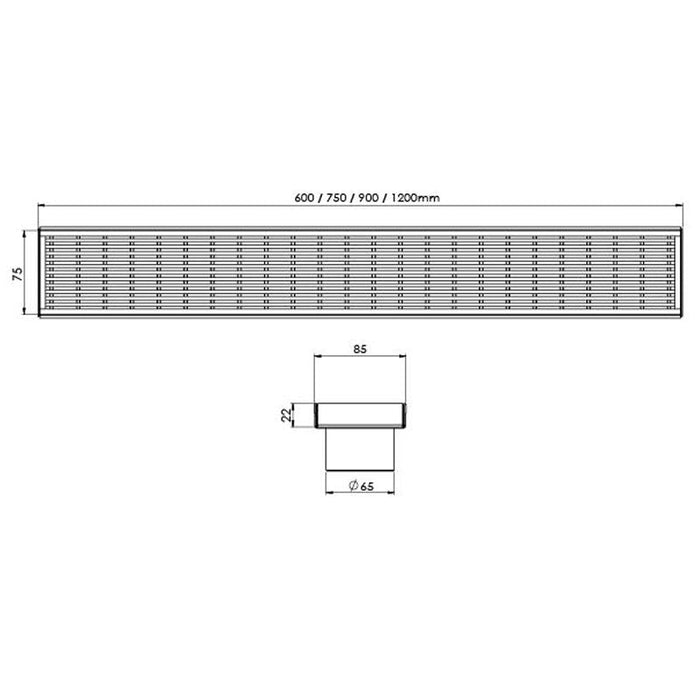

• Shallow, 22mm deep drain for easy and cost-effective installation
• Variable outlet position and available in 45mm and 65mm outlet size
• Supported by a 10 year warranty
• Must allow for the height, width, depth and outlet position as early as the concrete pour stage in a new house
• Assembled to order

Warranty Information

• 10 Year Product or Parts Warranty
• 2 Year Finish Warranty
